Description

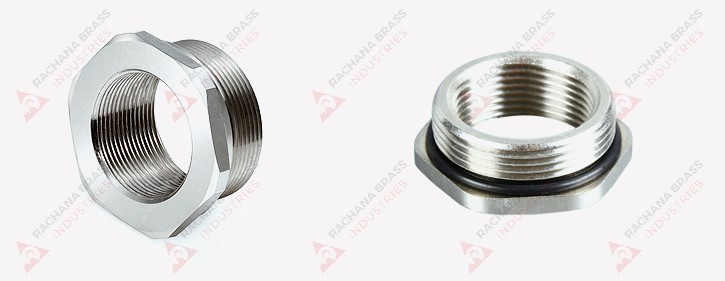

Our Flame Proof Reducers effectively reduce the threaded entry diameter of an enclosure to accept a gland or fitting with a smaller thread. We have installed advanced machines in the production unit that enable us in manufacturing and supplying of these reducers. These reducers are widely used in marine, automotive and electrical industry. To manufacture these reducers we use optimum quality mild steel and cast iron. Highly demanded in the market, these reducers are available for clients in different sizes and specification.

Technical Specification

Material:	Brass (IS-319)Standard (AI./ M.S / S.S. also available)
Plating :	Nickle Plated - Standard (Chrome also available)
Threads :	BSC - Standard (PG / Metric / NPT / BSP also available)
Sealing Rubber Ring:	Neoprene
Ref. Standard:	IS 2148 : 2004
Ingress Protection:	IP 65 as per IS 12063 - 1987
Test Certi. No.:	CMRI / TC / P / H788
Application:	Used in flammable gas vapour area. (Group I, IIA & IIB)
Size (MCR):	1" x 3/4", 1 1/4" x 1", 1 1/2" x 1 1/4", 2" x 1 1/2", 2 1/2" x 2", 3" x 2 1/2"
