Description

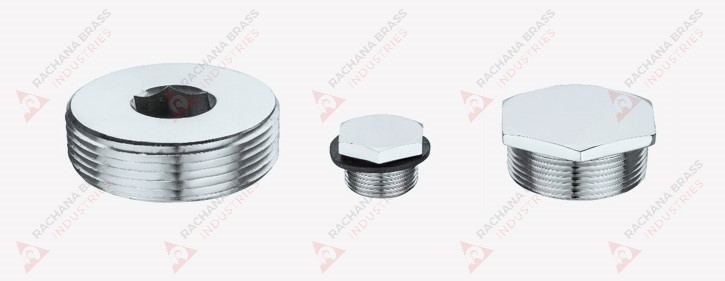

Our range of Stopping Plugs are designed to close any unused entries of an electrical equipment without revoking existing certification. Flameproof Stopping Plug is used along with the cable glands and other accessories for electrical explosion protection. The stopping plug offer a reliable and efficient solution for safe closing of opening of holes for cable entries in enclosures. The plug is capable of enduring heat, flame, rust, and other such degrading factors, therefore, we are seeing a huge demand for the Flame Proof Stopping Plug in the marketplace. It comes in varied sizes and types. The complete gamut of the stopping plug can be purchased from us at a cost-effective price.

Technical Specification

Material:	Brass (IS-319) Standard (AL./ MS / SS also available)
Plating :	Nickle Plated - Standard (Chrome also available)
Threads :	BSC - Standard (PG / Metric / NPT / BSP also available)
Sealing Rubber Ring:	Neoprene
Ref. Standard:	IS 2148 : 2004
ingress Protection:	IP 65 as per IS 12063 - 1987
Test Certi. No.:	CMRI / TC / P / H788
Application:	Used in flammable gas vapour area. (Group I, IIA & IIB)
Size (MCS):	3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"
