Description

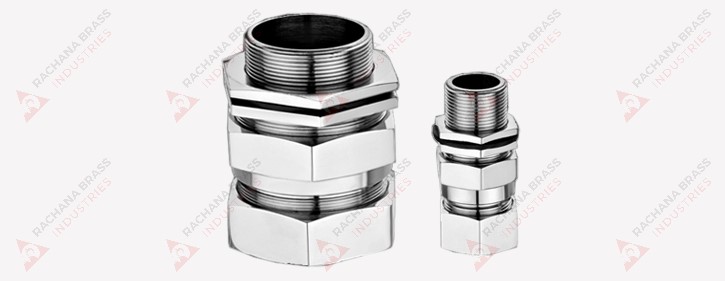

Flameproof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weatherproof, waterproof and dustproof (IP-66) which can be used in hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are suitable for all types of cables like Armour , Unarmour, Power, Instrumention, XLPE etc.

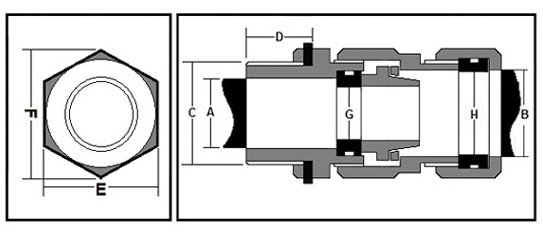

Gland Consist of Following Parts:

Technical Details

SIZE	AEFP01SSA To AEFP 016
ENTRY THREAD	METRIC
ALTERNATE THREAD	NPT, BSC ET, PG, METRIC, BSP
ENTRY THREAD RANGE	1/2" To 4.5" or M12 To M110
GLAND MATERIAL	Brass (IS-319)
ALTERNATE MATERIAL	Aluminium, SS, MS
OPERATING TEMPERATURE	-30 C To +100 C
FINISH	Nickel Plated
ALTERNATE FINISH	Tin, Chrome
SEAL MATERIAL	Neoprene / Silicon
SEAL SHORE HARDNESS	50 - 60
ACCESSORIES	Shroud, Earth Tag, Stopper, Reducer, Adaptors (Supplied Separately Upon Request)
GLAND STANDARD	BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
FLAMEPROOF PROTECTION	IS/IEC 60079-1:2007 (Reaffirmed : 2012)
INGRESS PROTECTION	IP 66 as per IS/IEC 60529:2001 (Reaffirmed 2014)
APPROVAL	Our AEFP Series Cable Glands are approved CSIR-Central Institute of Mining And Fuel Research – Dhanbad
