Description

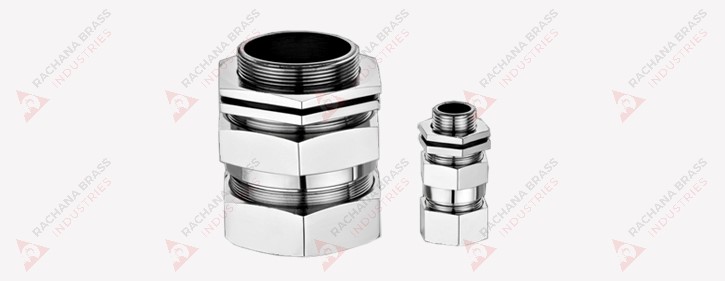

These glands are use under most climatic conditions & Generally for Armored Cable & Outdoor use. These are Weather proof and may be used in the corrosive condition when protected by shroud, It provides environmental seal for inner & outer sheath of cables. The cable glands also provides mechanical cable retention and electrical continuity via armor wire termination. This glands are suitable for all types of cables like armour, Unarmour, Power, Instrumention, XLPE etc.

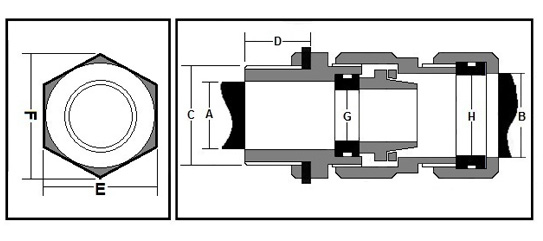

Gland Consist of Following Parts:

Technical Details

SIZE	AEWP01SSA To AEWP 016
ENTRY THREAD	BSC ET
ALTERNATE THREAD	NPT, PG, METRIC, BSP
ENTRY THREAD RANGE	1/2" To 4.5 “ or M12 To M110
GLAND MATERIAL	Brass (IS-319)
ALTERNATE MATERIAL	Aluminium, S.S, M.S
OPERATING TEMPERATURE	-30 C To +100 C
FINISH	Nickel Plated, Tin, Chrome
SEAL MATERIAL	Natural / Nitrile
SEAL SHORE HARDNESS	50 - 60
ACCESSORIES	Shroud, Earth Tag, Stopper, Reducer, Adaptors (Supplied Separately Upon Request)
GLAND STANDARD	BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
INGRESS PROTECTION	IP 66 as per IS/IEC 60529:2001 (Reaffirmed 2014)
APPROVAL	Secure AEWP Series Cable Glands are approved by CSIR-Central Iinstitute of Mining and Fuel Research – Dhanbad
