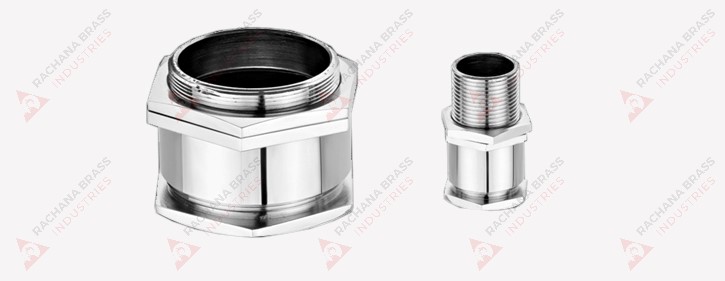

Description

These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.

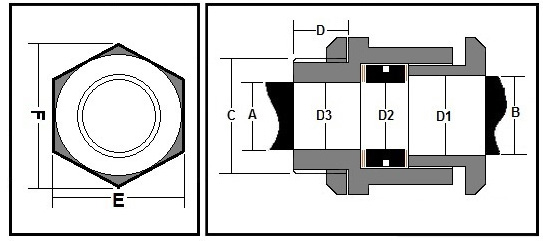

Gland Consist of Following Parts:

• Lock Nut

• Gland Body

• Gland Bush

• MS Washer (3 Nos)

• Rubber Seal

Technical Details

SIZE	3/8”- 10 MM To 4”-100 MM
ENTRY THREAD	ET
ALTERNATE THREAD	METRIC, NPT, PG, BSP
GLAND MATERIAL	Brass (IS-319)
ALTERNATE MATERIAL	Aluminium, S.S, M.S
OPERATING TEMPERATURE	-30 C To +100 C
FINISH	Nickel Plated
ALTERNATE FINISH	Tin, Chrome
SEAL MATERIAL	Natural / Nitrile
ACCESSORIES	Shroud, Earth Tag (Supplied Separately Upon Request)
GLAND STANDARD	IS-12943
INGRESS PROTECTION	IP 55
