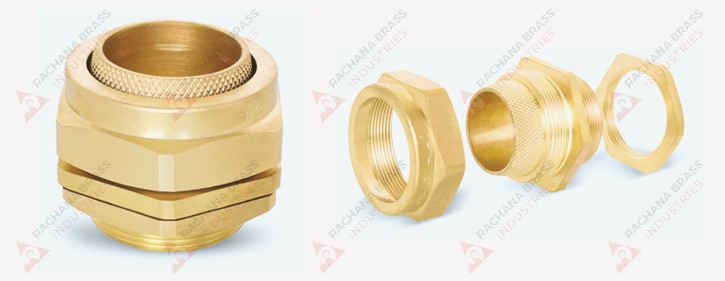

BW2 Part Cable Gland
Technical Details
| Size | 20 mm to 90 mm |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temperature | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Specification
Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
BW 20S |
20 |
3/4 |
10 |
13.00 |
15.50 |
BW 20L |
20 |
3/4 |
10 |
14.00 |
18.50 |
BW 25L |
25 |
1 |
10 |
20.50 |
26.00 |
BW 32L |
32 |
1.1/4 |
10 |
27.00 |
33.90 |
BW 40L |
40 |
1.1/2 |
15 |
33.00 |
41.50 |
BW 50S |
50 |
2 |
15 |
38.50 |
47.00 |
BW 50L |
50 |
2 |
15 |
44.00 |
52.00 |
BW 63S |
63 |
2.1/2 |
15 |
51.00 |
59.20 |
BW 63L |
63 |
2.1/2 |
15 |
56.50 |
65.50 |
BW 75S |
75 |
3 |
15 |
63.00 |
74.00 |
BW 75L |
75 |
3 |
15 |
68.50 |
79.50 |
BW 90L |
90 |
3.1/2 |
20 |
80.50 |
91.00 |
