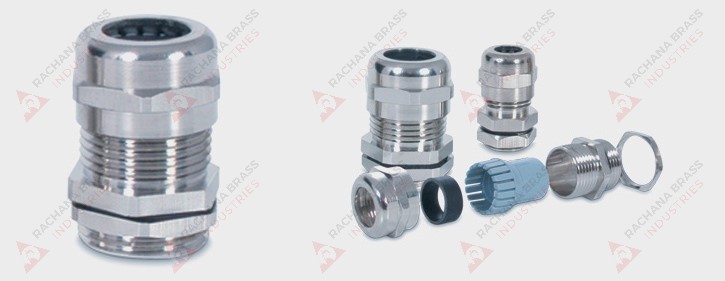

PG & Metric Cable Gland (IP-68)

SIZE	PG 7 TO PG 48 & M12 TO M63
APPLICATION	OUTDOOR OR INDOOR FOR USE WITH ALL TYPES OF UNARMORED CABLE
FUNCTION	PROVIDE SEAL ON OUTER SHEATH OF THE UNARMORED CABLE
INGRESS PROTECTION	IP68
MATERIAL	NICKEL PLATED BRASS
FINISH	CHROME FINISH, BRASS FINISH, NICKEL FINISH OR AS SPECIFIED
THREAD	PG & METRIC (ALSO AVAILABLE NPT)
ALTERNATE THREAD	NPT , BSC (ET) , BSP.
SEALS	NEOPRENE / NITRILE
INSERT	POLYAMIDE NYLON 6
OPERATING TEMPERATURE	-20 C TO +100
RELATED ACCESSORIES	REDUCER, ADAPTORS, BLANK PLUGS, SHROUD, LOCKNUT.

Size	A/F	A/C	C Thread	D Thread Length	H Rubber ID	Clamping Range
PG 7	14.00	15.50	PG 7	7.00	6.20	3 – 6
PG 9	17.00	19.00	PG 9	8.00	8.20	4 – 8
PG 11	20.00	22.00	PG 11	8.00	10.00	5 – 10
PG 13.5	22.00	24.00	PG 13.5	10.00	12.10	6 – 12
PG 16	24.00	26.50	PG 16	10.00	14.10	10 – 14
PG 21	30.00	33.00	PG 21	10.00	18.50	13 – 18
PG 29	40.00	44.00	PG 29	10.00	25.20	18 – 25
PG 36	50.00	55.00	PG 36	10.00	32.00	24 – 31.5
PG 42	57.00	62.00	PG 42	12.00	38.00	30 – 37.5
PG 48	64.00	72.00	PG 48	12.00	43.50	34 – 43
M 12	14.00	15.50	M12 X 1.5	7.00	6.20	3 – 6
M 16	17.50	19.00	M16 X 1.5	8.00	8.20	5 – 8
M 20	22.00	24.00	M20 X 1.5	10.00	12.10	6 – 12
M 25	27.00	29.50	M25 X 1.5	10.00	16.00	11 – 15.5
M 32	34.00	37.00	M32 X 1.5	10.00	20.70	14 – 20.5
M 40	43.00	47.50	M40 X 1.5	10.00	26.00	19 – 26
M 50	55.00	61.00	M50 X 1.5	10.00	35.00	24 – 34
M 63	65.00	72.00	M63 X 1.5	10.00	48.20	35 - 48
M 70	74.00	82.00	M70 X 1.5	15.00	54.00	40 - 53
M 75	79.00	87.00	M75 X 1.5	15.00	64.00	48 - 63
M 80	85.00	93.50	M80 X 1.5	15.00	69.00	53 - 68
M 90	95.00	103.00	M90 X 1.5	20.00	76.00	60 - 75
