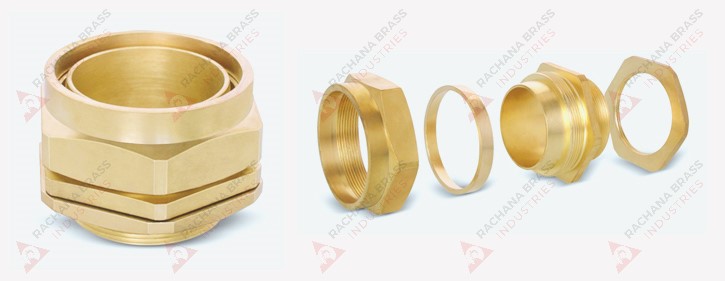

BW4 Part Cable Gland
Technical Details
| Size | 20 mm to 90 mm S & L |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temperature | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Specification
Size |
Thread |
Length |
A |
B |
A/F |
A/C |
|---|---|---|---|---|---|---|
20S |
M20 |
10.00 |
13.00 |
18.00 |
23.50 |
26.00 |
20L |
M20 |
10.00 |
14.00 |
21.00 |
25.00 |
28.00 |
25S |
M25 |
10.00 |
18.00 |
24.00 |
31.00 |
35.50 |
25L |
M25 |
10.00 |
20.50 |
27.00 |
33.00 |
37.00 |
32S |
M32 |
10.00 |
27.00 |
33.50 |
40.50 |
45.50 |
32L |
M32 |
10.00 |
27.00 |
33.50 |
40.50 |
45.50 |
40S |
M40 |
13.00 |
31.50 |
39.50 |
45.50 |
50.50 |
40L |
M40 |
13.00 |
33.00 |
41.50 |
49.00 |
55.00 |
50S |
M50 |
13.00 |
39.50 |
48.50 |
56.50 |
63.50 |
50L |
M50 |
13.00 |
44.50 |
54.50 |
62.50 |
70.50 |
63S |
M63 |
14.00 |
50.20 |
59.20 |
68.80 |
77.00 |
63L |
M63 |
13.50 |
56.50 |
65.50 |
76.00 |
86.00 |
75S |
M75 |
15.00 |
63.50 |
72.00 |
84.00 |
94.50 |
75L |
M75 |
15.00 |
69.50 |
78.50 |
90.00 |
101.00 |
90S |
M90 |
20.00 |
76.00 |
85.00 |
100.00 |
111.20 |
90L |
M90 |
18.00 |
78.40 |
90.50 |
103.00 |
115.00 |
