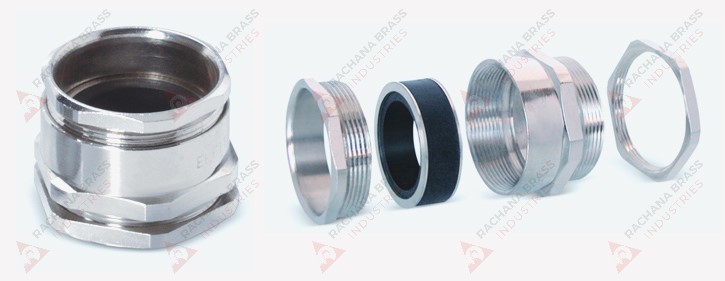

PG Cable Gland (IP-65)
Technical Details
| Size | PG 7 to PG 48 |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Outdoor or Indoor for use with all types of Unarmoured Cable |
| Function | Provide Seal on Outer Sheath of the Unarmoured Cable |
| Ingress Protection | IP65 |
| Material | Brass BS 2874 CZ121 Pb3 |
| Finish | Chrome Finish, Brass Finish, Nickel Finish or as specified |
| Thread | PG and also available in Metric Threads on request |
| Seals | Neoprene Material |
| Operating Temperature | -200 C to +800 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Specification
Size |
A |
B |
C |
D |
E |
F |
G |
|---|---|---|---|---|---|---|---|
PG-7 |
14.00 |
15.50 |
20.50 |
PG-7 |
10.00 |
5.00 |
150 |
PG-9 |
18.00 |
20.00 |
23.50 |
PG-9 |
12.50 |
6.00 |
150 |
PG-11 |
20.00 |
22.00 |
26.50 |
PG-11 |
15.00 |
6.50 |
150 |
PG-13 |
23.00 |
25.00 |
27.00 |
PG-13 |
16.75 |
7.10 |
150 |
PG-16 |
25.00 |
27.80 |
28.00 |
PG-16 |
18.50 |
6.50 |
150 |
PG-21 |
31.00 |
34.00 |
31.00 |
PG-21 |
24.10 |
7.10 |
150 |
PG-29 |
41.50 |
45.20 |
34.00 |
PG-29 |
32.10 |
8.50 |
150 |
PG-36 |
51.00 |
56.50 |
40.00 |
PG-36 |
43.00 |
10.00 |
150 |
PG-42 |
58.50 |
63.75 |
43.00 |
PG-42 |
47.50 |
10.00 |
150 |
PG-48 |
64.00 |
70.50 |
47.00 |
PG-48 |
52.25 |
10.00 |
150 |
