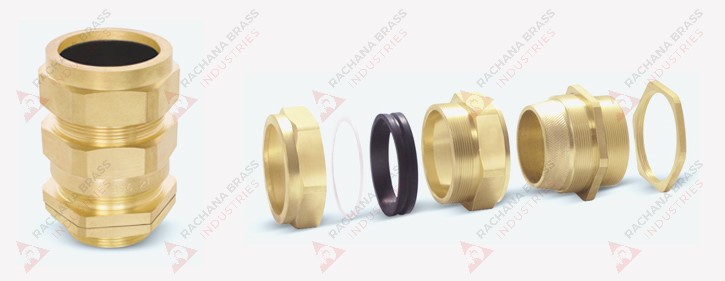

CW4 Part Cable Gland
Technical Details
| Size | 20 mm to 100 mm S & L |
|---|---|
| Standard | BS 6121, IEC 62444, EN 62444, EN50262 |
| Application | For indoor or outdoor use with all types of SWA Cable. |
| Function | CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.. |
| Material | Brass BS 2874 CZ121 Pb3 |
| IP Rating | IP65 |
| Optional Threads | METRIC, NPT, BSP & PG |
| Finish | Natural Brass Finish, Nickel Finish. |
| Operating Temperature | Standard Seals -200 C to +800 C. |
| Accessories | Lock Nut, Earth Tag, IP Nylon, Washer, Serrated Washer, PVC / LSF Shroud. |
Specification
Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
CW 20L |
M 20 |
1/2" |
10 |
14.00 |
20.50 |
CW 25S |
M 25 |
3/4" |
10 |
18.00 |
24.00 |
CW 25L |
M 25 |
3/4" |
10 |
20.00 |
27.20 |
CW 32S |
M 32 |
1" |
10 |
26.30 |
33.50 |
CW 32L |
M 32 |
1" |
10 |
26.30 |
33.50 |
CW 40S |
M 40 |
1-1/4" |
13 |
31.50 |
39.50 |
CW 40L |
M 40 |
1-1/4" |
13 |
32.00 |
40.00 |
CW 50S |
M 50 |
1-1/2" |
13 |
38.20 |
46.30 |
CW 50L |
M 50 |
2" |
13 |
44.00 |
52.60 |
CW 63S |
M 63 |
2" |
14 |
50.10 |
59.00 |
CW 63L |
M 63 |
2-1/2" |
14 |
56.00 |
65.30 |
CW 75S |
M 75 |
2-1/2" |
15 |
62.00 |
71.60 |
CW 75L |
M 75 |
3" |
15 |
68.00 |
78.00 |
CW 90S |
M 90 |
3" |
18 |
80.50 |
91.00 |
CW 90L |
M 90 |
3" |
18 |
80.50 |
91.00 |
